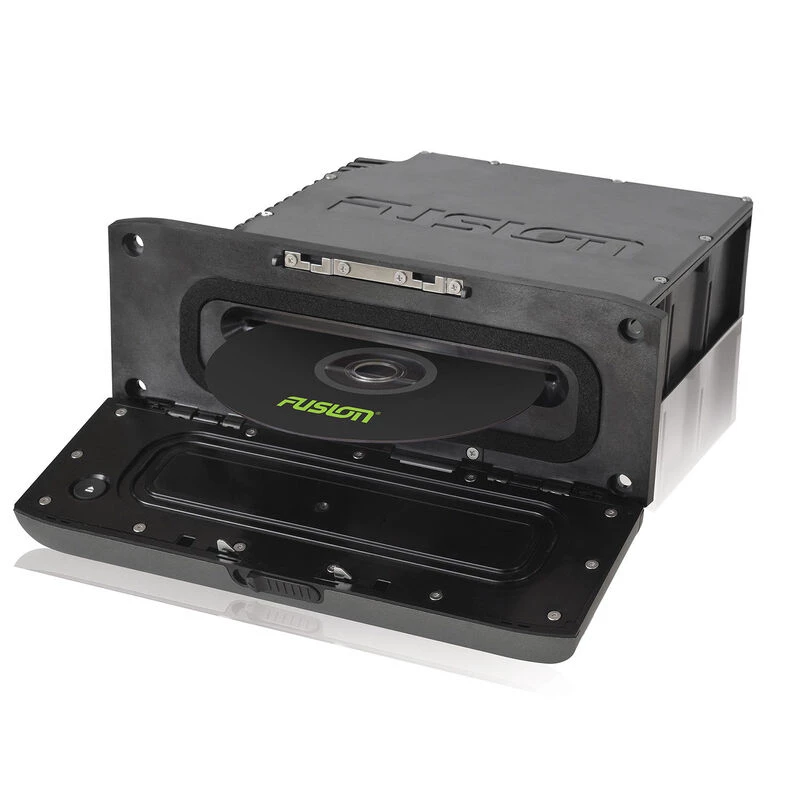

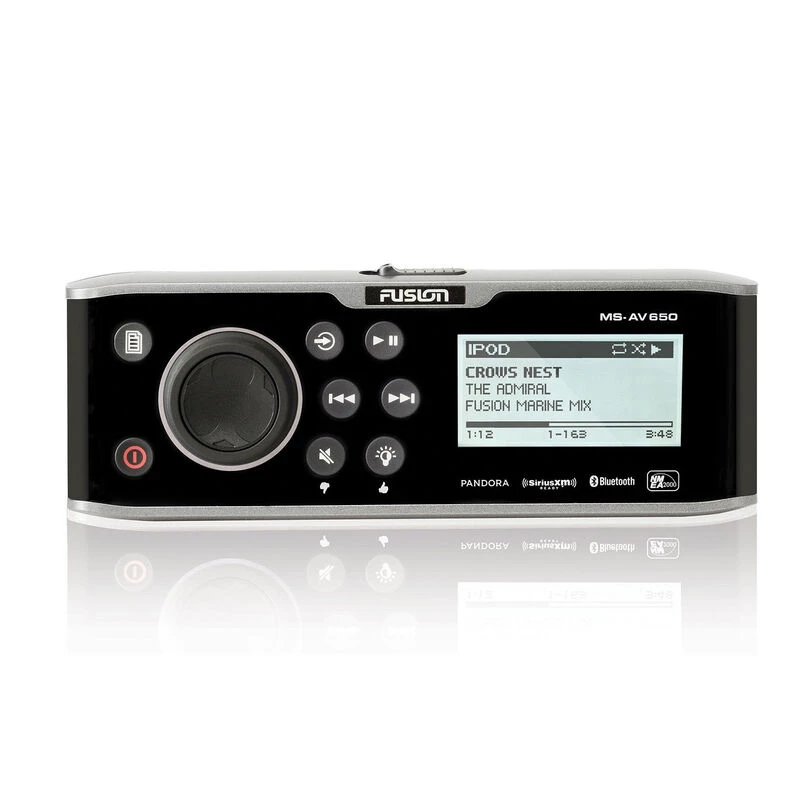

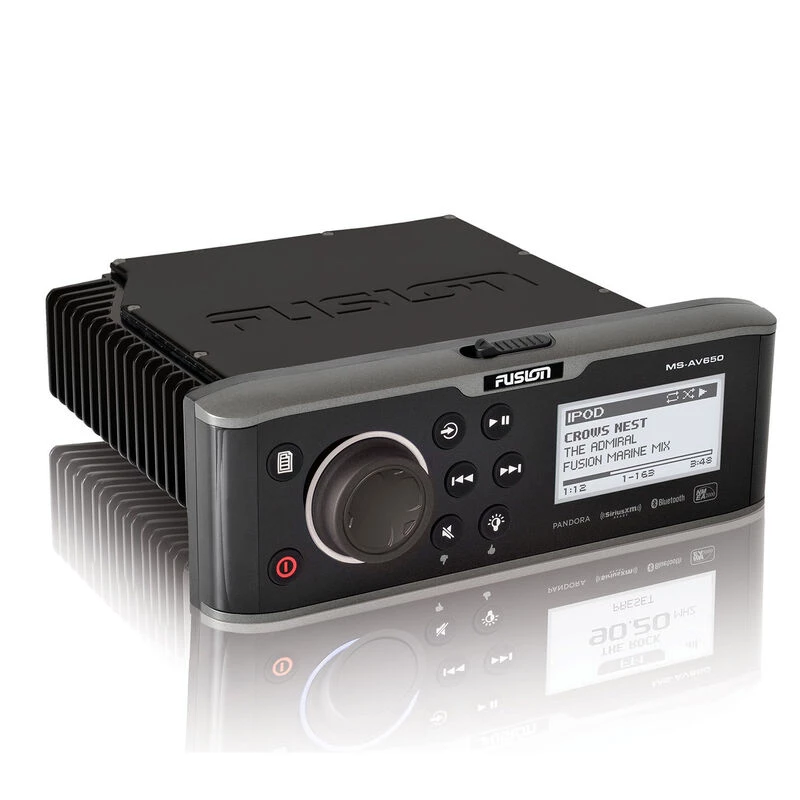

FUSION Receivers MS-AV650 Marine Entertainment Center With CD/DVD Player

The MS-AV650 Marine Entertainment Center by Fusion is the “True Marine” command center for all your media and NMEA 2000 compatible devices.

Yes, you can have it all: audio, video and NMEA 2000 functionality in four distinct zones of your boat find themselves controlled by one, central device. The MS-AV650 UniDock Marine Stereo is the ultimate command center for all your media on the water. In addition to the features that come standard in many marine stereos today, this device offers exceptional playback of your favorite DVDs, CDs,Bluetooth, Pandora Radio and Sirius XM radio music (tuner sold separately).

This waterproof device boasts higher quality and louder playback of your tunes through the Class-D amplifiers. FUSION-Link gives you NMEA 2000, Ethernet, Wi-Fi and  AVRCP/A2DP Bluetooth compatibility, allowing for simple installation and cohesive integration of your boat’s devices. Fusion’s Multi-Zone™ technology lets you control the output to three separate audio zones with the remote control (sold separately) which also funcitons as a NMEA repeater, displaying supported NMEA2000 network data from compatible marine electronics. Completely at home in the water, the MS-AV650 has a 360° IPX5 fully sealed chassis and  electronic shock protection. The MS-AV650 makes you the predominant entertainer on the high seas or your local lake.

Key Features

• Listen from a wide variety of sources: This device seamlessly interfaces with Bluetooth for cord-free use with your devices, has a DVD and CD slot, two AUX inputs, a USB input, and is compatible with MTP, AM/FM radio and SiriusXM (tuner sold separately).
• A2DP/AVRCP Bluetooth® Streaming: Stream your family’s favorite soundtrack from any compatible device, with track, album and artist info displayed, with navigation available from the stereo or connected device.
• Apple® iOS® and MTP Android™/Windows® Media Playback: Unparalleled support of the world’s most popular media devices, and the smartest interface for browsing your music library.
• FUSION-Link^® Control (Wired): Enables direct stereo control from a compatible Multi-Function Display (MFD) or MS-NRX200i wired remote control when utilizing an existing NMEA 2000 network. Visit www.fusion-link.com for compatible MFD’s.
• FUSION-Link Control (Wireless): Download the FREE Apple or Android FUSION-Link remote control app from iTunes™ or Google Play™ to control the on-board entertainment experience via Bluetooth. Bluetooth app coming soon.
• Pandora® Radio Support: Enjoy your favourite Pandora radio station, with thumbs up/down control available from the stereo or connected device. Available via USB or Bluetooth. (Pandora support for IOS includes USB and Bluetooth. Android Support is limited to Bluetooth only.)
• Multi-Zone™ Technology: Three independent audio zones are available, each with advanced localized menu controls, including zone naming. Note: Line Out Zones require additional amplification.
• Class-D Amplifier: Provides higher RMS output than a standard stereo, for louder and clearer audio while drawing less current.
• Side-Fin Cooling: Amplifier components are optimally configured for the side-fin aluminium heat sink, producing greater thermal efficiency.
• Glass Filled Composite Chassis: Structurally rigid and incredibly lightweight, this improves environmental protection and electrically isolates the chassis for complete reliability.
• True-Marine Designed and Engineered: Extensively tested to perform in the harsh marine environment.

What’s in the Box

• Marine Entertainment Center with CD/DVD Player
• Two mounting plates
• Mounting hardware: Four 8-guage, self-tapping screws; Four M4 machine screws
• Power and speaker wiring harnesses
• RCA splitter
• Documentation Packet

Specifications

• Functions: AM/FM/CD,CD-R/DVD/Bluetooth/2 AUX inputs/USB input/iPhone/MTP/SiriusXM (tuner sold separately)
• Audio Format: MP3/M4A/FLAC/CDA/DVD
• Amplifier: Class-D
• DVD Playback: DVD Playback with composite and component video connections
• Audio Zones: 3 Zones (Zone 1 & 2 powered by internal amplifier)
• FUSION-Link: NMEA 2000
• NMEA 2000: NMEA 2000 Certified LEN: 1
• Tuner: AM/FM with RDS
• Watts: 280W (70W x 4)
• Display Type: 128 x 64 monochrome optically bonded LCD
• Face Design: Flip-Down
• Dimensions: 8 7/16″W x 3 1/8″H x 8″D
• Cutout Size: 7 1/8″W x 2 3/32″H
• Remote Control: Sold separately
• Inputs: 2 AUX inputs, USB input with charging
• Preamp Outputs: 3 (1xL+R per zone, all require amplification)
• Waterproof Rating: IPX5 fully sealed chassis
• Warranty: Three years
