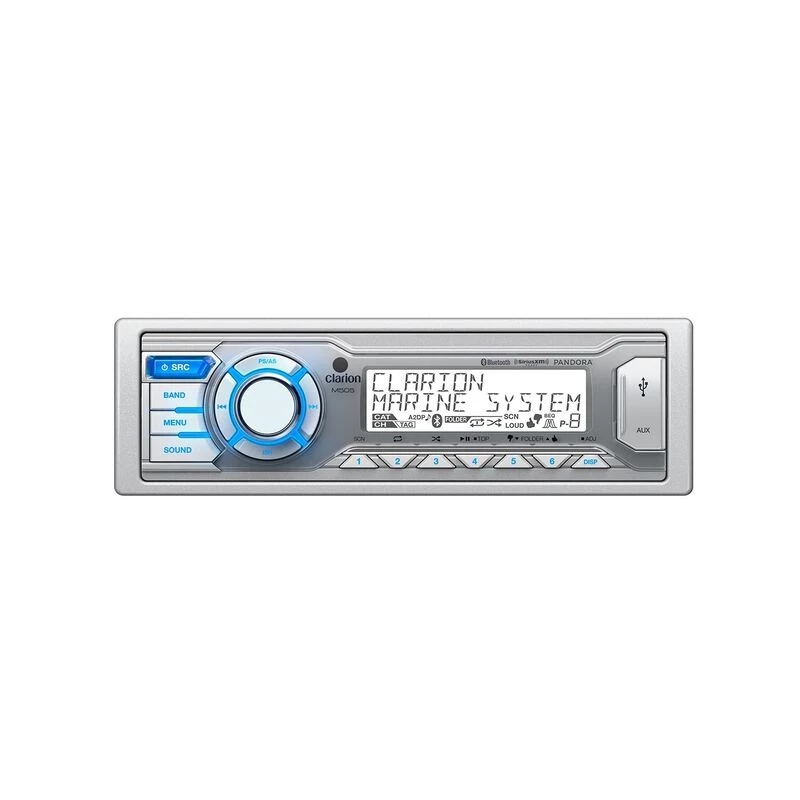

CLARION MARINE AUDIO Receivers M505 Marine Digital Media Receiver With Built-In Bluetooth

An audio system designed specifically for a boat environment, and it also looks wonderfully attractive. The two-line LCD display is able to show the information you need. And connectors have a protective cover to inhibit corrosion and damage. More information, more entertainment, nothing to worry about.

Bluetooth® aptX® for Superior Sound Entertainment via Bluetooth Audio Devices
The M505 incorporates the Bluetooth aptX codec that is also incorporated in many Android™ Phones. Since it restores the sound elements that are lost during digital compression of audio files, you can heve near CD quality sound. Now it’s possible to listen to high quality audio with wireless convenience even while out on the water.

Enjoy interactive Pandora® internet radio Anytime On The Water
Have fun with the same Pandora internet radio stations you enjoy on your home PC. Give songs a “thumbs up” or “thumbs down” — this interactivity means you’ll be listening to more of the songs you want. Just connect iPhone® and open up a new world of radio.

SiriusXM-Ready™ With Optional Tuner (SXV200 and SXV300)
Just hook-up the optional SiriusXM Vehicle Tuner in order to access hundreds of satellite radio channels including music, sports, talk, comedy, news and so much more!

TUNER

Frequency Bands FM/AM FM : 87.9-107.9MHz steps auto/manual : 100/200kHz
AM : 530-1710kHz steps auto/manual : 9/10kHz
FM usable sensitivity (dBf): 8
FM alternate channel selectivity (dB): 60
FM stereo separation @1 kHz (dB): 30
FM stereo freq. resp. @ ±3 dB (Hz): 30 to 15,000

AUDIO

Maximum Power Output: 50W × 4
Power Output (CEA2006 Power Ratings): 20W × 4

GENERAL

Dimensions (W × H × D) (Inches): 7-1/8 × 2 × 6-1/2
Dimensions (W × H × D) (mm): 180 × 50 × 165
Power consumption: less than 15 A
Speaker impedance: 4Ω (4Ω to 8Ω allowable)
